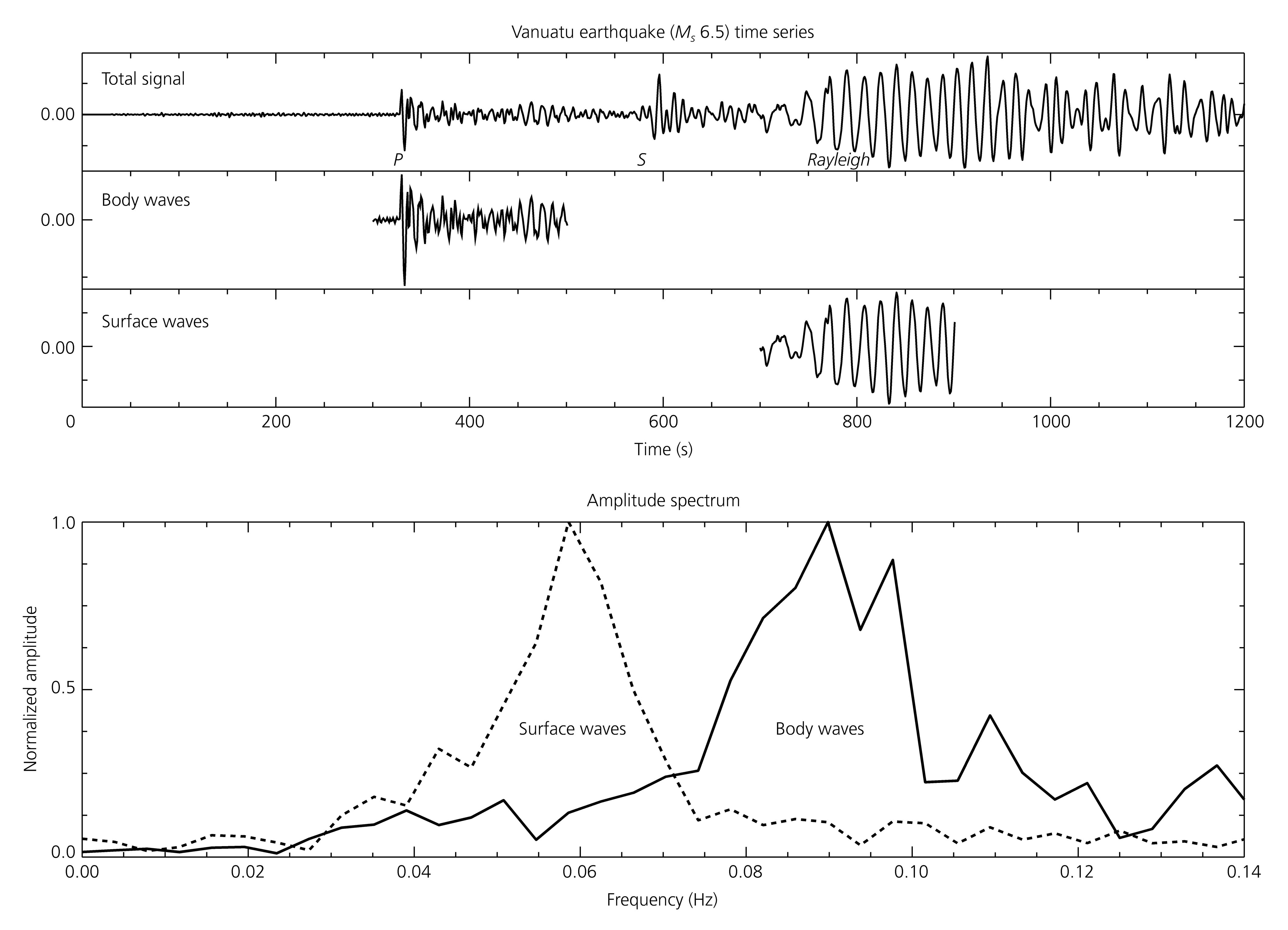

The different frequency contents of seismic body and surface waves can be demonstrated by windowing the different portions of the seismogram and transforming them into the frequency domain.
