GPS data, vectors and volcano monitoring: an exercise for introductory geology students based on VEPP data
This activity was selected for the On the Cutting Edge Reviewed Teaching Collection
This activity has received positive reviews in a peer review process involving five review categories. The five categories included in the process are
- Scientific Accuracy
- Alignment of Learning Goals, Activities, and Assessments
- Pedagogic Effectiveness
- Robustness (usability and dependability of all components)
- Completeness of the ActivitySheet web page
For more information about the peer review process itself, please see http://serc.carleton.edu/NAGTWorkshops/review.html.
This page first made public: Jul 27, 2010
Brief three-line description of the activity or assignment and its strengths (you will have an opportunity to expand on this description later in the form):
This exercise is designed to investigate continuous GPS data from sites around Pu'u'Oo. Students will analyze time series of displacement, create maps of displacement vectors and discuss implications of the data and potential as a volcano monitoring technique.
Note: this exercise is currently in development and will not be implemented by the author until Spring 2011. Be aware that updates and changes may occur through this time.
Full length description:This activity is designed for freshman or sophomore level courses in Introductory Geology or Geological Hazards for non-majors. No prior math skills are assumed; the activity can be completed without prior knowledge of GPS data, volcano monitoring or Hawaiian geology. The activity can be completed in class as a lab activity or as a homework assignment. Students will complete a series of activities centered on GPS time-series data from Pu'u 'O'o. Following this activity, the VEPP site will be examined as a group in order to investigate GPS data relating to known magmatic episodes at Pu'u 'O'o.
Part 1: In-class activity (described in detail in class handout)
- Examination of time series and computation of displacement and velocities.
- Graphing of displacement vectors for identified time intervals and determination of actual motion vectors.
- These activities are interspersed by guided questions.
Part 2: In-Class web-based evaluation of VEPP data.
Think-Pair-Share activity among whole class. Once students have looked at the Pu'u 'O'o data described in part 1 of the activity, the class as a whole will look at data corresponding to either up to the minute activity or known events in the past. Using skills they have developed in the activity, they will work in small groups to interpret the data on the fly, using the work they have done previously to guide them. This part of the activity will provide the basis for discussion and explanation of the activity over-all.
Recognition of application of GPS data to measure of ground motion.
Creation of motion vectors based on GPS time series
Briefly describe the higher order thinking skills goalsfor this activity (e.g., those involving analysis of data, formulation of hypotheses, synthesis of ideas, critical evaluation of competing models, development of computer or analog models):
Students compare and contrast ground motion during different time intervals for sites at Pu'u'Oo.
Students summarize value of GPS data in volcano monitoring.
Briefly describe any other skills goalsfor this activity (e.g., those involving writing, operating analytical equipment, searching the WWW, oral presentation, working in groups):
searching the web
Working in groups
writing narrative descriptions of data and interpretations
Context for Use
What is the type of activity (a problem set, classroom activity, lab activity, project, field activity, and/or a writing activity)?
Activity can be completed in class as a lab activity (in small groups), or as a problem set. Part 2 is a classroom activity.
What is the class type (small intro lecture, large intro lecture, or UD/grad course; disasters, hazards, field course, or intro geology; with or without computers; community college)?
This activity is designed for a community college class of 30-35 students, freshman or sophomore level majors and non-majors; can be done with or without computers.
Briefly describe the type(s) and level(s) of course in which this activity or assignment could be used (e.g., undergraduate required course in structural geology, introductory physical geology course for non-majors, graduate level seminar on geochemistry):
This activity could also be used in a lower level geologic hazards or disasters class for majors or non-majors.
Briefly describe or list the skills and concepts that students must have mastered before beginning the activity:
Students are assumed to have no prior college math skills. Some introductory knowledge of volcanoes would be useful.
Briefly describe how the activity is situated in your course (e.g., as a culminating project, as a stand-alone exercise, as part of a sequence of exercises):
This project will be situated as a stand-alone exercise to be done during our study of volcanoes. It will serve as a laboratory exercise.
Description and Teaching Materials
Materials for activity1. Background text about continuous GPS data with example from Kiluaea
2. Copy of Pu'u 'O'o location map showing GPS sites around vent.
3. Time series for selected sites showing north, east and up components of GPS motion over a select time period (3 are included here: SPIL, PUOC, JCUZ
4. Questions relating to analysis.
5. Colored pencils
Access to internet and ability to project web-images for part 2 of exercise.
Copy of Documents for exercise
Word Document Word document containing class exercise (Microsoft Word 2007 (.docx) 3.7MB Jul30 10)PDF document PDF document containing class exercise (Acrobat (PDF) 8.4MB Jul30 10)
Products1. Annotated time series for selected sites
2. Tabulated data produced through analysis of time series
3. 3 maps: displacement vectors for different time intervals for one site; displacement vectors for all sites, common time interval; velocity vectors for selected site, different time intervals
4. responses to questions
Background Material for students
Introduction to Global Positioning Systems (GPS)The following text and images are taken from the USGS website: Volcano Exploration Program: Pu'u 'O'o; URL: http://ulua.wr.usgs.gov/vepp
The use of the Global Positioning System (GPS) in Earth sciences has only been prominent since the 1980s, but since then has become nearly ubiquitous in volcano deformation measurements around the world. The system relies on a ground-based receiver and antenna, which records signals broadcast by an array of orbiting satellites. Given enough data, GPS data can be used to determine positions to within a few mm horizontally and ~10 mm vertically. GPS can be used in campaign mode, where a receiver and antenna are moved frequently to measure a series of fixed benchmarks (emblems permanently cemented into the ground) or installed for continuous measurement of surface motion at a single location. Typically, continuous GPS stations are powered by a combination of batteries and solar panels.
The data received by continuous GPS stations are susceptible to a number of environmental effects unrelated to volcano deformation. For example, snow buildup on a GPS antenna can cause path delays, rain can induce surface loading, small movements can be detected due to diurnal or seasonal temperature variations, and most importantly, storms and other atmospheric phenomena can introduce deformation artifacts. Fortunately, atmospherically-based problems are less likely to affect tightly-clustered GPS networks, since all stations in such a network will see the same phenomena, and such effects will be canceled out.
GPS Network at Pu'u 'Ō'ōThere are over 60 continuously operating GPS stations on the Island of Hawai'i, most of which are operated by the Hawaiian Volcano Observatory for the purpose of earthquake and volcano monitoring. All stations have a GPS antenna mounted on a mast that is cemented into solid rock. The antenna is connected to a receiver which is typically run using a combination of solar and battery power. Data are collected at least every 30s and, at some stations, every 1s, and periodically radioed to the Hawaiian Volcano Observatory where processing is completed and positions calculated.
Pu'u 'Ō'ō GPS StationsPUOC: located on the north rim of Pu'u 'Ō'ō crater, installed in June 2006, currently operational.
SPIL: located on the southeast rim of Pu'u 'Ō'ō crater, installed in July 2007, currently operational.
OKIT: located on the west flank of Pu'u 'Ō'ō, installed in July 2007, currently operational.
NPOC: located on the north flank of Pu'u 'Ō'ō, installed in July 2007, currently operational.
JCUZ: located on the south flank Pu'u 'Ō'ō, installed in July 2007, currently operational.
CHUD: located on the west flank Pu'u 'Ō'ō crater, installed in July 2007, currently operational.
KAMO: located about 1.8 km northwest of Pu'u 'Ō'ō crater, installed in August 2007, currently operational.
MKPM: International GPS Service (IGS) station near the summit of Mauna Kea on the Island of Hawai'i, currently operational. This site can be used as a stable reference (''Baseline Benchmark'' in the Data-VALVE3 interface) for plotting East, North, and Up components of the above Pu'u 'Ō'ō stations.
site map (Acrobat (PDF) 2.1MB Jul29 10)
Example: CGPS at Kīlauea Volcano, Hawai'iThe use of GPS in volcano monitoring is exemplified by deformation during the June 17-19 intrusion and eruption near Makaopuhi Crater on Kīlauea's east rift zone (the so-called 'Father's Day event', also referred to as Episode 56 of the Pu'u 'Ō'ō-Kupaianaha eruption).
During June 17-19, 2007, magma drained from the summit area to feed an intrusion and small eruption in the vicinity of Makaopuhi Crater. As a result, the summit deflated and the rift zone widened substantially. Magma supply to Pu'u 'Ō'ō was also interrupted, causing the crater floor to collapse and resulting in substantial deflation of the cone. The network of continuous GPS stations on Kīlauea, supplemented by measurements from temporary campaign deployments, captured the surface deformation associated with this event in unprecedented detail. Models derived from those data can be used to estimate the volume of magma that drained from the summit, and the volume and dimensions of the dike that intruded the rift zone.

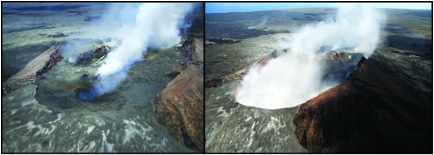

Aerial views of Pu'u 'Ō'ō from before and after the Father's Day event. Left: June 1, 2007 view of Pu'u 'Ō'ō looking to the southwest. Right: Approximately the same view of Pu'u 'Ō'ō, but on June 20, 2007.
The time series above depicts northward motion of the PUOC GPS station, located on the north rim of Pu'u 'Ō'ō crater, during June 2007. Starting on about June 17, the station began to move south as Pu'u 'Ō'ō deflated and the crater floor collapsed in response to the interruption in magma supply. The motion continued until at least June 23.
Map of surface deformation of Kīlauea Volcano from GPS as a result of the June 17-19, 2007, east rift zone intrusion and eruption. Note that GPS stations around the summit of the volcano show contraction, while GPS stations on the east rift zone near Makaopuhi crater moved away from one another. This pattern is a result of magma draining from the summit into a dike beneath the surface near Makaopuhi Crater. GPS station PUOC (blue) was the only site located on Pu'u 'Ō'ō at that time. The large southward motion of that site indicates deflation and collapse of Pu'u 'Ō'ō crater as the magma supply to the eruption site was cut off by the up-rift intrusion and eruption.
More information about this event:
Press releases: http://hvo.wr.usgs.gov/pressreleases/pr06_17_07.html
Cervelli, P., Segall, P., Amelung, F., Garbeil, H., Owen, S., Miklius, A., and Lisowski, M., 2002, The 12 September 1999 Upper east rift zone dike intrusion at Kīlauea Volcano, Hawai'i: Journal of Geophysical Research, v. 107, no. B7, 2150, doi:10.1029/2001JB000602.
Desmarais, E.K., and Segall, P., 2007, Transient deformation following the 30 January 1997 dike intrusion at Kīlauea volcano, Hawai'i: Bulletin of Volcanology, v. 69, no. 4, p. 353-363.
Miklius, A., Cervelli, P., Sako, M., Lisowski, M., Owen, S., Segall, P., Foster, J., Kamibayashi, K., and Brooks, B., 2005, Global Positioning System Measurements on the Island of Hawai'i: 1997 through 2004: U.S. Geological Survey Open-File Report 2005-1425, 46 p.
Montgomery-Brown, E.K., Sinnett, D.K., Poland, M.P., Segall, P., Orr, T., Zebker, H., and Miklius, A., in press, Geodetic evidence for en echelon dike emplacement and concurrent slow-slip at Kīlauea volcano, Hawai'i, June 17, 2007: Journal of Geophysical Research.
Owen, S., Segall, P., Freymueller, J.T., Miklius, A., Denlinger, R.P., Arnadottir, T., Sako, M.K., and Bürgmann, R., 1995, Rapid deformation of the south flank of Kīlauea Volcano, Hawai'i: Science, v. 267, no. 5202, p. 1328-1332.
Owen, S., Segall, P., Lisowski, M., Miklius, A., Denlinger, R., and Sako, M., 2000, Rapid deformation of Kīlauea Volcano: Global Positioning System measurements between 1990 and 1996: Journal of Geophysical Research, v. 105, no. B8, p. 18,983-18,993.
Owen, S., Segall, P., Lisowski, M., Miklius, A., Murray, M., Bevis, M., and Foster, J., 2000, January 30, 1997 eruptive event on Kīlauea Volcano, Hawai'i, as monitored by continuous GPS: Geophysical Research Letters, v. 27, no. 17, p. 2757-2760.
Poland, M.P., Miklius, A., Orr, T., Sutton, A.J., Thornber, C.R., and Wilson, D., 2008, New episodes of volcanism at Kīlauea Volcano, Hawai'i: EOS, Transactions, American Geophysical Union, v. 89, no. 5, p. 37-38.
Segall, P., Cervelli, P., Owen, S., Lisowski, M., and Miklius, A., 2001, Constraints on dike propagation from continuous GPS measurements: Journal of Geophysical Research, v. 107, no. B9, p. 19,301-19,317.
Introduction to basic vectors
From Wikipedia: http://en.wikipedia.org/wiki/Euclidean_vector
In elementary mathematics, physics, and engineering, a Euclidean vector (or simply a vector) is a geometric object that has both a magnitude (or length) and direction. A Euclidean vector is frequently represented by a line segment with a definite direction, or graphically as an arrow, connecting an initial point A with a terminal point B. A vector is what is needed to "carry" the point A to the point B. The magnitude of the vector is the distance between the two points and the direction refers to the direction of displacement from A to B.
Materials for activity
1. Background text about continuous GPS data with example from Kilauea
2. Copy of Pu'u 'O'o location map showing GPS sites around vent.
3. Time series for selected sites showing north, east and up components of GPS motion over a select time period (3 are included here: SPIL, PUOC, JCUZ
4. Access to internet
5. Questions relating to analysis.
6. Colored pencils
What to turn in:
1. Answers to questions
2. Table of observations and calculations
3. Annotated time series
4. Three vector graphs as described in exercise
Collect the materials listed above to be ready to complete this exercise.
Read the provided information about GPS data and vectors. Refer to these information sheets as needed in this project.
As part of your background reading, refer to the USGS-VEPP website (password protected) to read about the history of Pu'u 'O'o:
Also visit the USGS Hawaii Volcano Observatory site to examine the active webcam at Pu'u 'O'o:
Once you are familiar with the background of the area and the GPS technique, examine the time-series shown for the selected stations that are included in this exercise.
Examination of time-series
Examine the time series of displacement that are provided and answer the questions that follow.
1. What are the units of the horizontal axes?
2. What are the units of the vertical axes?
Data tables that you will need are below; make three copies of your location map to produce your vector graphs.
Remember that these data are measured relative to a base station that is far away from this site.
3. What do the negative and positive numbers indicate for each time series? (remember, these numbers have to be related to north, south, east or west)
Using a Number 2 pencil, mark any obvious changes in the trends of the data by drawing a vertical line across the east, north and vertical graphs that crosses the x-axis at the appropriate time(s). We'll refer to these marks as transition dates.
4. For each transition date, how does displacement appear to change before and after? For example, does it appear to move toward the reference station away; does it move up or down? Summarize your observations.
5. Did you identify the same transition dates for each station? Should you have found the same transition dates at each site? Why or why not?
Now create a table to quantify the answers that you provided above.
- Record each transition date (to the nearest day)
- Compute the number of days within each interval
- Measure the amount of displacement between the start and stop of the interval
tips for determining displacement:
Remember, there are 1000 mm in 1 meter
(1000 mm = 1 m; or 1 mm = 0.001 mm)
We are determining displacement during each time interval. So you need to determine the starting position and the ending position. Then:
total displacement = Ending position – starting position
It might help to tabulate this info so that you don't get confused.
Determining the starting and ending positions will take some thought. Here are some suggestions:
1. Draw a line through the center of the data and then use the starting and ending points as a "mean" position for your calculations.
2. Draw a line along the upper limit of the data and a parallel line along the lower limit. Then take the difference of the starting and ending point of the upper or lower line (they should be the same, right?) Note that not all of the points will fall inside the lines.
Velocity determination from displacement dataCompute velocities for each site by combining the "# of days" info for each interval with the displacement data that you obtained above.
Tabulate your results.
7. What do your velocities tell you about how displacement changes across each transition date?
8. Does it make sense to compare the amount of displacement for the different intervals? Or is it better to compare velocities? Why or why not? Give specific examples to illustrate your answer.
Graph Displacement VectorsWe will make the following graphs:
1. Graph of displacement vectors; one site; all intervals
2. Graph of displacement vectors; all sites; one common interval
3. Graph of velocity vectors; one site; all intervals
Graph #1: displacement at one site, all intervals
Refer to your displacement and velocity data that you created earlier. Choose a colored pencil to correspond to each time interval that you have identified. For each station that you have been studying, we'll create displacement vectors for each interval. So, if you have identified three different displacement intervals, then you will have three different vectors of different colors coming from each station. It will look something like the image below:
On your tables, you have displacement information directed to the north and to the east; these are 2 components of the displacement. We want to combine this information to see the actual direction and quantity of displacement.
To create our actual displacement vector, we need to combine the north and south info:
First, graph the north displacement vector. (Remember the length must represent the value of the displacement, so you will have to use a scale of some sort to plot this information. If this is not provided on the map, you will have to determine one for yourself based on the values you have computed for your displacements).
Combine the east vector data by graphing its value at the tip of the north vector (in the image below, the north vector is green and the east is shown in purple):
The final displacement vector (shown in black below) will connect the beginning of the north vector with the tip of the east vector:
Now repeat this for your observations. But when you are plotting your north and east vectors, use a plain #2 pencil; use colored pencils for the final displacement vector and erase the north and east vectors when you are done (these will just make your map too complicated).
9. For each time interval that you have studied, use your protractor to determine the direction of motion and measure the vector length to determine the amount. Summarize your results on a table.
10. Summarize the results in your table with a brief narrative description of how the site moved over the different time intervals
Graph 2: displacement at all sites, one time interval
Choose a time interval that all of the sites have in common. Graph the displacement vectors for each site during this interval following the guidelines described above.
Complete a table like that you did above so that you can compare all of the results easily.
11. Summarize how these different sites moved relative to one another with a brief narrative description.
Graph 3: velocity at one site, all time intervals
Return to a single site (can be the one you worked on first. Now graph the velocity vectors for this site over the different time intervals you identified. Again, complete a table like that above so that you can easily compare the different velocities.
12. Summarize the results in your table with a brief narrative description of how the site velocity changed over the different time intervals
Summary questions to ponder
13. Which do you like better? The vector graph or the time series? Which makes more sense to you and why? (there is no right answer here; just opinions)
14. Looking at the vertical data for all of the sites, what does it tell you the sites did during the past year? Why would this data be more difficult to work with than the horizontal components of north and east?
15. Can you imagine how these data might change in the days leading up to or following an eruption? Do you think that this sort of data would be useful in evaluating eruption threat?
Teaching Notes and Tips
Please describe any helpful examples of this activity, as well as any potential variations on this theme:
The exercise contains instructions to compute displacement and velocities; the velocity step can be omitted if it is too complex or too time consuming.
Data from three sites are included for the past year. If different sites or time periods are desired, these data can be constructed using the VEPP site.
What tips might you offer to other educators planning to use this activity?
This activity can be done directly using the VEPP website, or can be done using pre-downloaded hardcopy material as shown here. In the event that students access the VEPP site to create their own time series, they should be prepared to spend time familiarizing themselves with the site. Documentation is available at the site to show how to acquire the data.
Displacement vectors can be generated using the VEPP site for comparison with student results.
Examples of partially completed exercises are shown in the following images:
Sample data tabulation (Acrobat (PDF) 33kB Jul29 10)
Verify for yourself these results.
Assessment of this exercise will be through the following:
- Graded responses to activity questions (address SLO #1, #3, #4)
- Vector graphs will be graded and assessed for agreement with observations made from time series and tabulated on assigned tables (address SLO #2)
References and Resources
Please list any supporting references or URLs for this activity:
